Glasswool Insulation

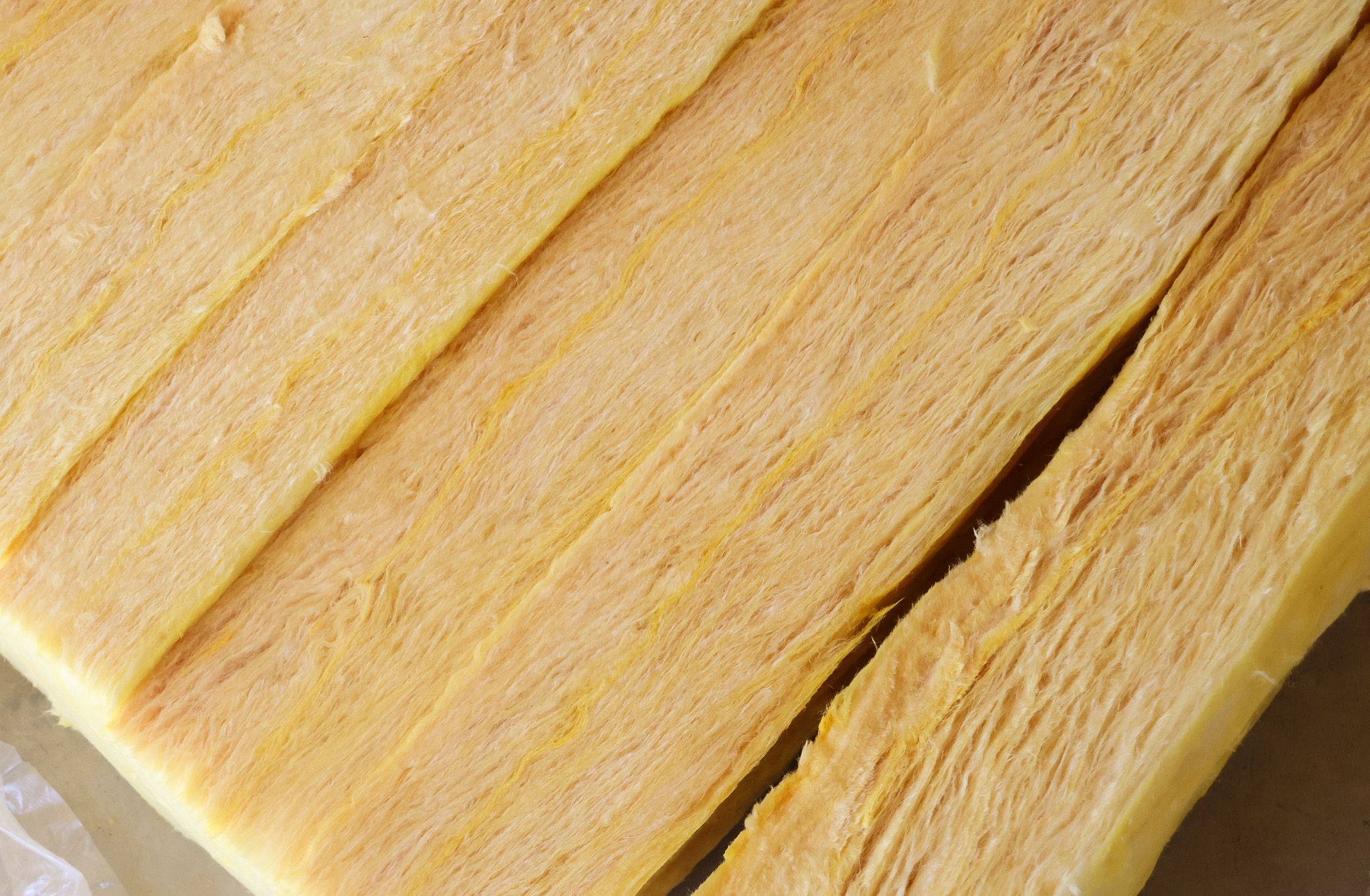

TemperTherm Glasswool is a resin-bonded Thermal & Acoustic insulation material made using up to 90% recycled glass. It is designed for use in framed walls, ceilings, and mid- floor applications in both residential and commercial construction. Our Glasswool is available in blanket and segment form.

KEY FEATURES

  • Manufactured using up to 90% recycled glass

  • Resin bonded for enhanced durability

  • Cost effective, flexible, and easy to install

  • High R-values, up to R7.3 single layer, supporting compliance to NZBC H1 Energy Efficiency requirements

  • Non-combustible

  • Select products are BRANZ Appraised & Eco Choice Aotearoa Certified.

  • 50 Year Durability Warranty.

BRANZ APPRAISAL
Selected TemperTherm Glasswool Insulation products are BRANZ Appraised (Appraisal 1151). A BRANZ Appraisal is a robust, in-depth and independent evaluation of a building product or system to assess it’s fitness for purpose and
compliance with Building Code performance requirements.

50 YEAR WARRANTY
PIL Group Limited takes pride in offering a 50-year Durability Warranty for all TemperTherm branded glasswool insulation. This warranty assures the durability of the insulation material when installed in compliance with the product BRANZ Appraisal, the product Installation Instructions, and NZ4246: Energy Efficiency – Installing insulation in residential buildings.

Thermal & Acoustic Glasswool Insulation

TEMPERTHERM GLASSWOOL 90mm WALL, MID-FLOOR & HD CEILING BLANKETS
Product Nominal Thickness Standard Widths Material Density Thermal Conductivity (λ 50/90) Eco Choice BRANZ Appraised
R2.2 Thermal & Acoustic HD Segments 70mm 580mm 24kg/m3 0.032 W/mK
R1.8 Thermal & Acoustic Blanket* 75mm 1,200mm 12kg/m3 0.0403 W/mK ✔ ✔
R2.2 Thermal & Acoustic Blanket* 90mm 1,200mm 12kg/m3 0.0399 W/mK ✔ ✔
R2.4 Thermal & Acoustic Blanket 90mm 1,200mm 18kg/m3 0.0375 W/mK ✔ ✔
R2.6 Thermal & Acoustic Blanket 90mm 1,200mm 24kg/m3 0.0338 W/mK ✔ ✔
R2.8 Thermal & Acoustic Blanket* 90mm 1,200mm 32kg/m3 0.0317 W/mK ✔ ✔
TEMPERTHERM GLASSWOOL 140mm WALL, MID-FLOOR & SKILLION ROOF
Product Nominal Thickness Standard Widths Material Density Thermal Conductivity (λ 50/90) Eco Choice BRANZ Appraised
R3.2 115mm Wall-Mid-Floor-Skillion Segments 115mm 430mm 22kg/m3 0.0354 W/mK ✔ ✔
R3.2 140mm Wall-Mid-Floor-Skillion Blanket 140mm 1,200mm 11kg/m3 0.0425 W/mK ✔ ✔
R3.6 140mm Wall-Mid-Floor-Skillion Blanket 140mm 1,200mm 16kg/m3 0.0386 W/mK ✔ ✔
R4.0 140mm Wall-Mid-Floor-Skillion Blanket 140mm 1,200mm 24kg/m3 0.0332 W/mK   ✔
R4.4 140mm Wall-Mid-Floor-Skillion Blanket 140mm 580mm 32kg/m3 0.0319 W/mK
R4.5 165mm Skillion Roof Segments 165mm 430mm 20kg/m3 0.0347 W/mK ✔ ✔
R5.0 1680mm Skillion Roof Segments 180mm 430mm 17kg/m3
TEMPERTHERM GLASSWOOL MASONRY WALL & SERVICE CAVITY BLANKET
Product Nominal Thickness Standard Widths Material Density Thermal Conductivity (λ 50/90) Eco Choice BRANZ Appraised
R1.0 Masonry & Service Cavity Blanket 40mm 1,200mm 13kg/m3 0.0405 W/mK ✔ ✔
R1.3 Masonry & Service Cavity Blanket* 50mm 1,200mm 16kg/m3 0.0385 W/mK ✔ ✔
TEMPERTHERM GLASSWOOL CEILING SEGMENTS
Product Nominal Thickness Standard Widths Material Density Thermal Conductivity (λ 50/90) Eco Choice BRANZ Appraised
R3.6 Ceiling Segments 175mm 430mm 8kg/m3 0.0478 W/mK ✔ ✔
R4.1 Ceiling Segments 195mm 430mm 8kg/m3 0.0468 W/mK ✔ ✔
R5.2 Ceiling Segments 230mm 430mm 10kg/m3 0.0423 W/mK ✔ ✔
R6.3 Ceiling Segments 260mm 430mm 12kg/m3 0.0412 W/mK*
R7.0 Ceiling Segments 275mm 430mm 14kg/m3 0.0393 W/mK
R7.3 Ceiling Segments 275mm 430mm 16kg/m3 0.0365 W/mK ✔ ✔
TEMPERTHERM GLASSWOOL CEILING BLANKETS
Product Nominal Thickness Standard Widths Material Density Thermal Conductivity (λ 50/90) Eco Choice BRANZ Appraised
R2.7 Ceiling, Soffit & GCFO Blanket 120mm 1,200mm 12kg/m3 0.0389 W/mK
R3.6 Ceiling Blanket 155mm 1,200mm 12kg/m3 0.0410 W/mK ✔ ✔
R4.1 Ceiling Blanket 175mm 1,200mm 12kg/m3 0.0405 W/mK ✔ ✔

*Approved for GIB Noise Control Systems.
