100% Polyester Insulation

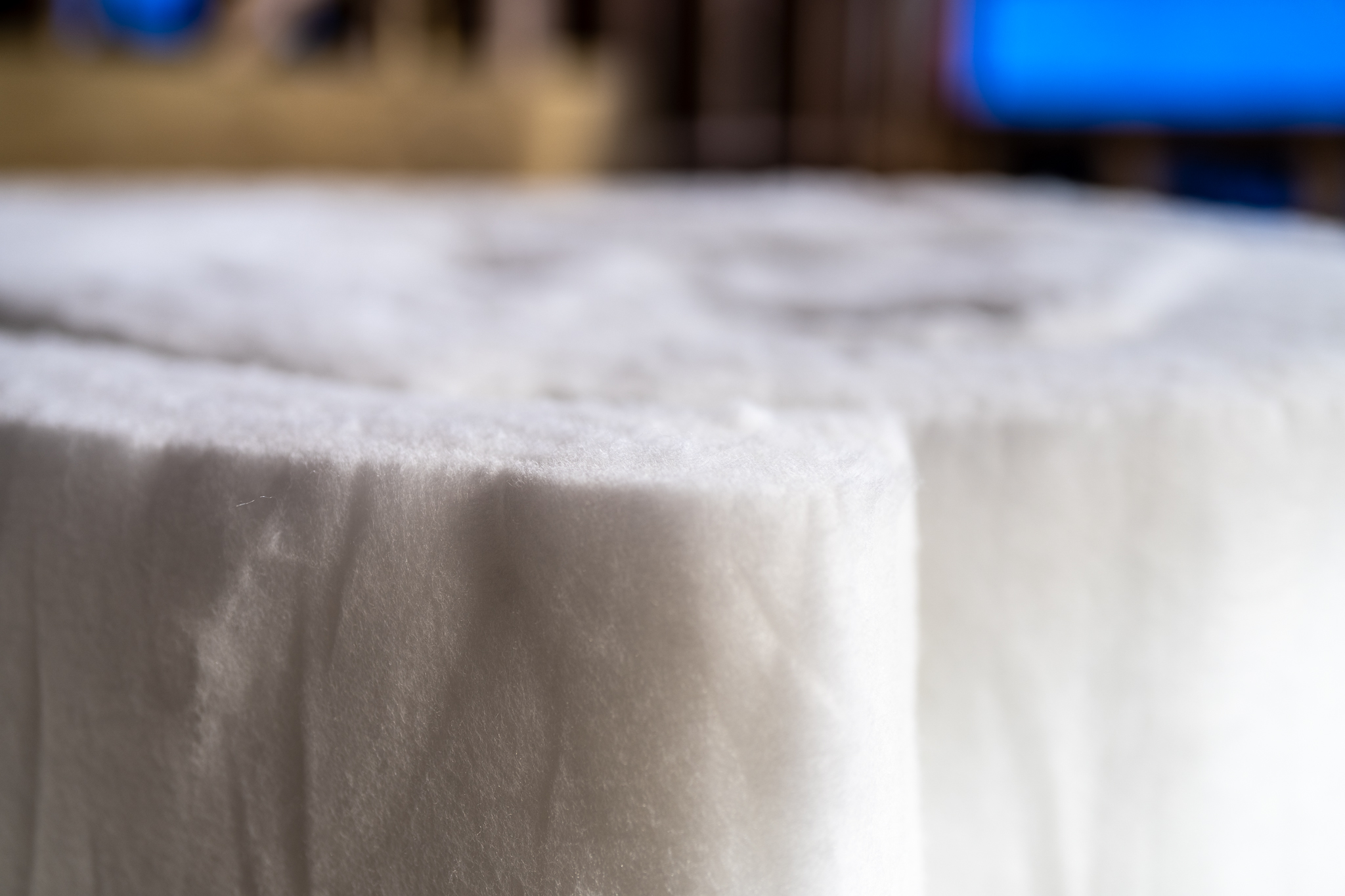

TemperTherm 100% Polyester Insulation is proudly manufactured in NZ from thermally bonded polyester fibres, for use in framed walls, ceilings, skillion roofs, suspended floors, and mid-floor applications in both residential and commercial
construction and contains minimum 45% recycled fibre from post-consumer recycled PET plastic.

Our Polyester Insulation is available in a range of widths and performance options and is available in blanket, skillion and
segment forms.

KEY FEATURES

  • Manufactured using 100% polyester fibres and contains a minimum 45% post-consumer recycled PET plastics.
  • Moisture and vermin resistant.
  • Cost effective, flexible, and easy to install.
  • Non-toxic, non-allergenic, non-irritant, soft and safe to touch
  • Proudly Made in NZ.
  • Select products are BRANZ Appraised & Eco Choice Aotearoa Certified.
  • 50 Year Durability Warranty.

BRANZ APPRAISAL
Selected TemperTherm Polyester Insulation products are BRANZ Appraised (Appraisal 1090 (2019). A BRANZ Appraisal is a robust, in-depth and independent evaluation of a building product or system to assess it’s fitness for purpose and
compliance with Building Code performance requirements.

50 YEAR WARRANTY
PIL Group Limited takes pride in offering a 50-year Manufacturer’s Durability Warranty for all TemperTherm branded polyester thermal and acoustic insulation. This warranty assures the durability of the insulation material when installed in compliance with the product BRABZ Appraisal, the product Installation Instructions, and NZ4246: Energy Efficiency – Installing insulation in residential buildings.

100% Polyester Insulation Product Range

TEMPERTHERM 100% POLYESTER 70mm/90mm/140mm HIGH-DENSITY THERMAL INSULATION
Product Nominal Thickness Standard Widths Thermal Conductivity (λ50/90) Eco Choice BRANZ Appraised
R1.8 70mm Wall 70mm 560mm 0.0368 W/mK ✔ ✔
R2.0 70mm Retro Wall 70mm 560mm 0.0368 W/mK
R2.0 90mm Segments 90mm 360mm/560mm 0.0371 W/mK ✔ ✔
R2.2 90mm Segments 90mm 360mm/560mm 0.0350 W/mK ✔ ✔
R2.5 90mm Segments 90mm 360mm/560mm 0.0345 W/mK ✔ ✔
R2.6 140mm Segments 140mm 360mm/560mm 0.0511 W/mK ✔ ✔
R2.8 140mm Segments 140mm 360mm/560mm 0.0441 W/mK ✔ ✔
R3.2 140mm Segments 140mm 360mm/560mm 0.0430 W/mK ✔ ✔
R3.4 140mm Segments 140mm 360mm/560mm 0.0412 W/mK ✔ ✔
R3.6 140mm Segments 140mm 360mm/560mm 0.0480 W/mK ✔ ✔
TEMPERTHERM 100% POLYESTER THERMAL CEILING BLANKET
Product Nominal Thickness Standard Widths Thermal Conductivity (λ50/90) Eco Choice BRANZ Appraised
R1.8 115mm Ceiling Blanket 115mm 870mm 0.0524 W/mK ✔ ✔
R2.4 145mm Ceiling Blanket 145mm 870mm 0.0523 W/mK ✔ ✔
R2.9 175mm Ceiling Blanket 175mm 870mm 0.0581 W/mK ✔ ✔
R3.3 200mm Ceiling Blanket 200mm 870mm 0.0562 W/mK ✔ ✔
R3.6 225mm Ceiling Blanket 225mm 870mm 0.0590 W/mK ✔ ✔
R4.1 245mm Ceiling Blanket 245mm 870mm 0.0570 W/mK ✔ ✔
TEMPERTHERM 100% POLYESTER MASONRY WALL & SERVICE CAVITY BLANKET
Product Nominal Thickness Standard Widths Thermal Conductivity (λ50/90) Eco Choice BRANZ Appraised
R1.0 Masonry Wall & Service Cavity Blanket 45mm 580mm 0.0428 W/mK
R1.3 Masonry Wall & Service Cavity Blanket 45mm 360mm 0.0345 W/mK
TEMPERTHERM 100% POLYESTER HD MID-FLOOR / SKILLION ROOF BLANKET
Product Nominal Thickness Standard Widths Thermal Conductivity (λ50/90) Eco Choice BRANZ Appraised
R2.9 Mid-Floor-Skillion Blanket 115mm 115mm 870mm 0.0385 W/mK
R3.2 Mid-Floor-Skillion Blanket 140mm 140mm 870mm 0.0430 W/mK ✔ ✔
R3.4 Mid-Floor-Skillion Blanket 140mm 140mm 870mm 0.0412 W/mK ✔ ✔
R3.6 Mid-Floor-Skillion Blanket 140mm 140mm 870mm 0.0380 W/mK
R3.8 Mid-Floor-Skillion Blanket 165mm 165mm 870mm 0.0500 W/mK ✔ ✔
R3.8 Mid-Floor-Skillion Blanket 165mm 165mm 870mm 0.0457 W/mK ✔ ✔
R3.8 Mid-Floor-Skillion Blanket 165mm 165mm 870mm 0.0400 W/mK ✔ ✔
TEMPERTHERM 100% POLYESTER SUSPENDED FLOOR THERMAL INSULATION
Product Nominal Thickness Standard Widths Thermal Conductivity (λ50/90) Eco Choice BRANZ Appraised
R1.5 Retro-Fit Underfloor 100mm 450mm/510mm/600mm/650mm 0.0571 W/mK ✔
R1.8 Retro-Fit Underfloor 115mm 450mm/510mm/600mm/650mm 0.0524 W/mK ✔
R2.0 Retro-Fit Underfloor 115mm 450mm/510mm/600mm/650mm 0.0524 W/mK ✔
R2.6 140mm Underfloor 140mm 370mm 0.0511 W/mK ✔ ✔
R2.8 140mm Underfloor 140mm 370mm 0.0441 W/mK ✔ ✔
R3.0 140mm Underfloor 140mm 370mm 0.0430 W/mK ✔ ✔
R3.6 165mm Underfloor 165mm 370mm 0.0497 W/mK ✔ ✔
R3.8 165mm Underfloor 165mm 370mm 0.0457 W/mK ✔ ✔
R3.8 165mm Underfloor 165mm 370mm 0.0400 W/mK ✔ ✔
TEMPERTHERM 100% POLYESTER CARPARK & SOFFIT INSULATION PANELS
Product Nominal Thickness Pack Configuration Thermal Conductivity (λ50/90) m2 per Pack Colour
R1.8 Carpark & Soffit Insulation 70mm 1200mmx2400mm 0.0368 W/mK 2.88 Grey
R2.0 Carpark & Soffit Insulation 90mm 1200mmx2400mm 0.0371 W/mK 2.88 Grey
R2.2 Carpark & Soffit Insulation 90mm 1200mmx2400mm 0.0350 W/mK 2.88 Grey
R2.5 Carpark & Soffit Insulation 90mm 1200mmx2400mm 0.0345 W/mK 2.88 Grey
R2.8 Carpark & Soffit Insulation 140mm 1200mmx2400mm 0.0441 W/mK 2.88 Grey
R3.2 Carpark & Soffit Insulation 140mm 1200mmx2400mm 0.0430 W/mK 2.88 Grey
R3.6 Carpark & Soffit Insulation 165mm 1200mmx2400mm 0.0430 W/mK 2.88 Grey
TEMPERTHERM 100% POLYESTER ACOUSTIC WALL & MID-FLOOR BLANKET
Product Nominal Thickness Material Weight Material Density Product Format Standard Widths
Acoustic Wall & Mid-Floor Blanket 90mm 1,100gsm 12.2kg/m2 Roll Form 430mm/560mm
Acoustic IT Blanket* 90mm 1,350gsm 15.0kg/m2 Roll Form 560mm
TEMPERTHERM 100% POLYESTER ACOUSTIC METAL STUD PARTITION BLANKET
Product Nominal Thickness Material Weight Material Density Product Format Standard Widths
50mm Sound Blanket 50mm 735gsm 14.7kg/m2 Roll Form 600mm
60mm Sound Blanket 60mm 750gsm 12.5kg/m2 Roll Form 600mm
70mm Sound Blanket 70mm 900gsm 12.8kg/m2 Roll Form 600mm
75mm Sound Blanket* 75mm 1,150gsm 15.3kg/m2 Roll Form 600mm
120mm Sound Blanket 120mm 1,680gsm 14.0kg/m2 Roll Form 600mm

*Approved for GIB Noise Control Systems.

TEMPERTHERM 100% POLYESTER ACOUSTIC BAFFLE STACK
Product Nominal Thickness Material Weight Material Density Product Format Standard Widths
Acoustic Baffle Stack 120mm 1,000gsm 8.33kg/m2 Roll Form 600mm
TEMPERTHERM 100% POLYESTER ACOUSTIC ABSORPTION PANELS
Product Nominal Thickness NRC Rating Material Density Product Format Standard Widths
PAB 35-25 (875gsm) 25mm NRC 0.70 (est.) 35kg/m2 Panel 2400mm x 1200mm
PAB 35-50 (1,750gsm) 50mm NRC 0.90 (est.) 35kg/m2 Panel 2400mm x 1200mm
PAB 20-100 (2,000gsm) 100mm NRC 0.95 20kg/m2 Panel 2400mm x 1200mm

PAB is available as White, Grey, or Black Sheets and is made to order. MOQ 250m2 may apply.
